Fully Transparent PDMS (Silicone rubber)

2.5 cm wide x 3 cm long Main Plate

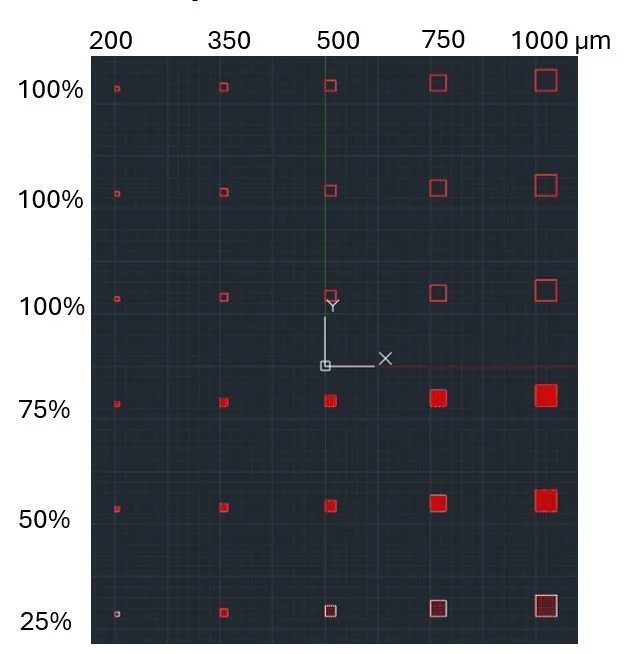

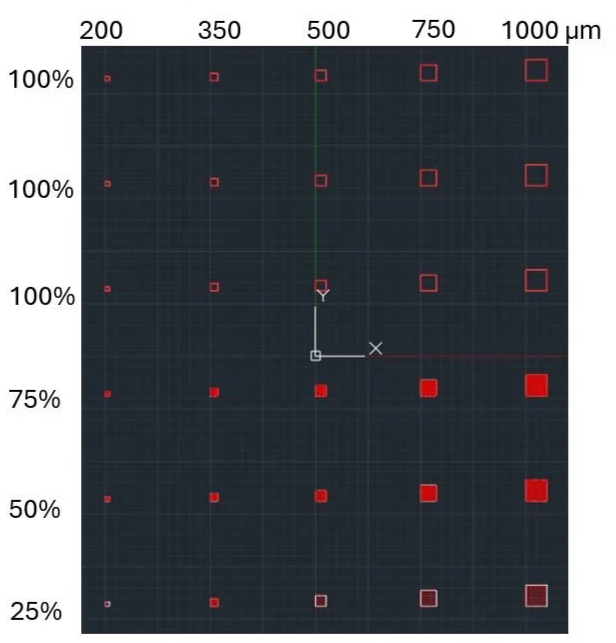

Main plate is 30 different regions in a 5 × 6 Array

Pillar micro structures

50 um Tall

For transferring small scale chiplets

Designed by RMS and MIT Lincoln labs for quantum computing devices

1 mm x 1 mm Wide Area

100% Fill: Quantity = 3 (Square)

75% Fill: Quantity = 1 (Rectangles)

50% Fill: Quantity = 1 (Rectangles)

25% Fill Quantity = 1 (Circles)

750 um x 750 um Wide Area

100% Fill: Quantity = 3 (Square)

75% Fill: Quantity = 1 (Rectangles)

50% Fill: Quantity = 1 (Rectangles)

25% Fill Quantity = 1 (Circles)

500 um x 500 um Wide Area

100% Fill: Quantity = 3 (Square)

75% Fill: Quantity = 1 (Rectangles)

50% Fill: Quantity = 1 (Rectangles)

25% Fill Quantity = 1 (Circles)

350 um x 350 um Wide Area

100% Fill: Quantity = 3 (Square)

75% Fill: Quantity = 1 (Rectangles)

50% Fill: Quantity = 1 (Rectangles)

25% Fill Quantity = 1 (Circles)

200 um x 200 um Wide Area

100% Fill: Quantity = 3 (Square)

75% Fill: Quantity = 1 (Rectangles)

50% Fill: Quantity = 1 (Rectangles)

25% Fill Quantity = 1 (Circles)
